AutoSplit The firewood processor for firewood and kindling
Performance data
- Powerful 11 t Splitting power max.
- Fast 5 sec per splitting cycle
- Efficient ∼ 100 bags/hour max.

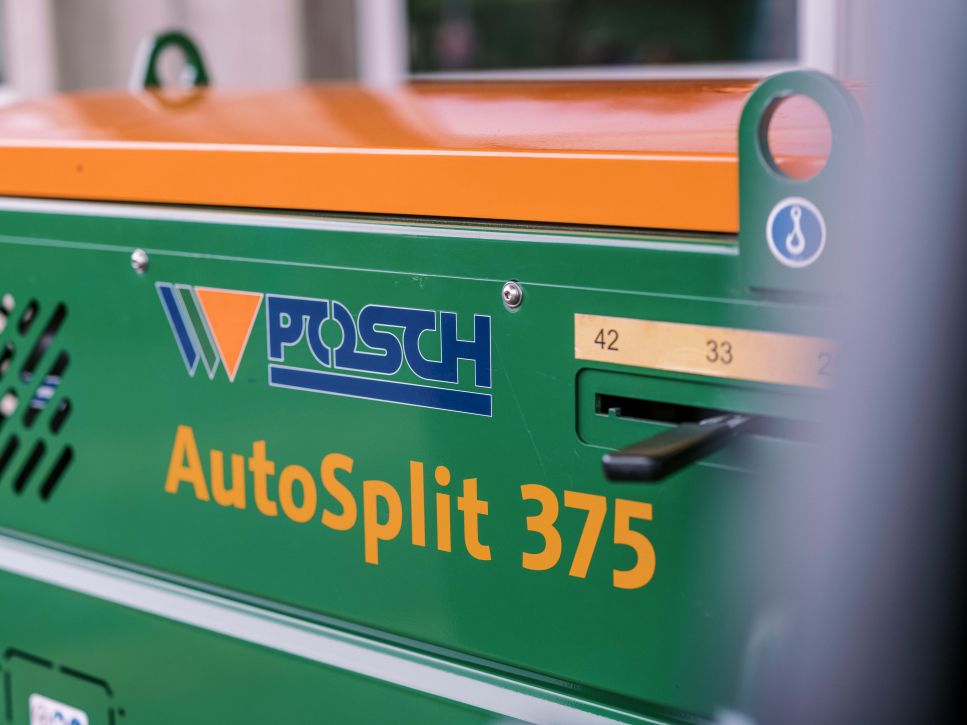

NEW: AutoSplit 375
Larger diameters, longer billets, more power: That’s the successor to our AutoSplit 350!
Its packaging concept was updated while a cast pump provides for a study hydraulic system. At 11 tonnes of splitting force, this automatic wood splitter packs 15 % more power than its predecessor.
Its billet edge length is adjustable between 2 and 15 cm, allowing it to produce both kindling and firewood
The AutoSplit 250: for kindling wood
The AutoSplit 250 processes wood with a length between 16 and 20 cm as standard and can also be supplemented with a short-log option if desired. With the optional single blade, you can also turn short boards or rinds into kindling wood and benefit from leftovers from the sawmill operation.
Up to a log Ø of 25 cm
AutoSplit 250
For perfect kindling
For logs up to 25 cm and square timber up to 20 cm in diameter.
For logs up to 25 cm and square timber up to 20 cm in diameter.
- Splitting power 5 t
- Splitting wedge V-shaped
- Type of wood softwood
- Billet length 12-20 cm
- Drive E-motor, tractor, combined, petrol engine
Up to a log Ø of 37 cm AutoSplit 375
For perfect kindling and firewood.
For logs up to 37 cm in diameter
For logs up to 37 cm in diameter
- Splitting power 11 t

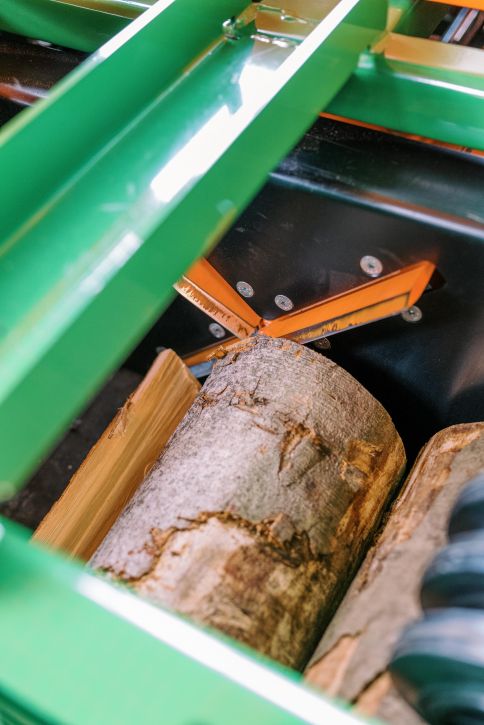

- Splitting wedge X-shaped
- Type of wood soft- and hardwood
- Billet length 16-42 cm
- Drive E-motor, tractor, combined, petrol engine
Up to a log Ø of 41 cm AutoLogger 420
For perfect kindling made from log sections
For logs up to 41 cm in diameter
For logs up to 41 cm in diameter
- Splitting power 12 t
- Splitting wedge X-shaped
- Type of wood soft- and hardwood
- Billet length 12-33 cm
- Drive E-motor, tractor, combined

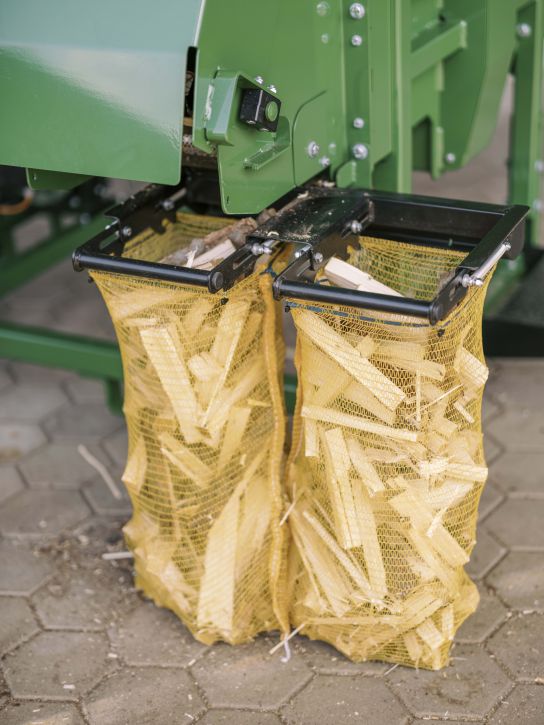

For mesh bags Packaging frame for loose billets
The 2-piece frame is moveable, the billets produced fall loosely into the mesh bags. For billet lengths 12–20 cm (AutoSplit 250) or 20–25 cm (AutoSplit 375).
For use with mesh bags or cardboard boxes Packaging chute for stacked billets
Using the chute, the billets are neatly stacked or loosely packed directly into mesh bags or cardboard boxes. For billet lengths 12–20 cm (AutoSplit 250) or 16–42 cm (AutoSplit 375).
Mesh bags to reorder Bags for packaging kindling and firewood
The mesh bags are available in 2 sizes: For up to 10 or up to 25 kg of kindling and firewood.
- Continuous wood supply
- Infinitely adjustable kindling thickness
- Splitting process without interruptions
- Processes round and squared timber
- The right packaging system
- Safe continuous operation
- Continuous wood supply
The long wood feed chute with practical loading height ensures an optimal and continuous workflow of the kindling wood vending machine. - Infinitely adjustable kindling thickness
The infinitely variable feed from 2 to 10 cm (AutoSplit 250) or 2 to 15 cm (AutoSplit 375) allows you to determine the desired log edge length (wood thickness) quickly and easily. - Splitting process without interruptions
The purely hydraulically controlled feed increases the operational reliability of the machine, while the spring-loaded infeed belt keeps tool wear and effort low. - Processes round and squared timber
The AutoSplit gives you more options for neat wood processing. The automatic unit processes log lengths between 12 and 33 cm and optionally also processes slabs or boards from sawmills. - The right packaging system
Decide on cardboard or net packaging, loose or layered - we will find the right automatic splitting machine for your requirements! - Safe continuous operation
The oil cooler (NOT included with the PZG drive) increases the service life in continuous operation (from four hours).
- The AutoSplit turns logs with a diameter of up to 25 cm…

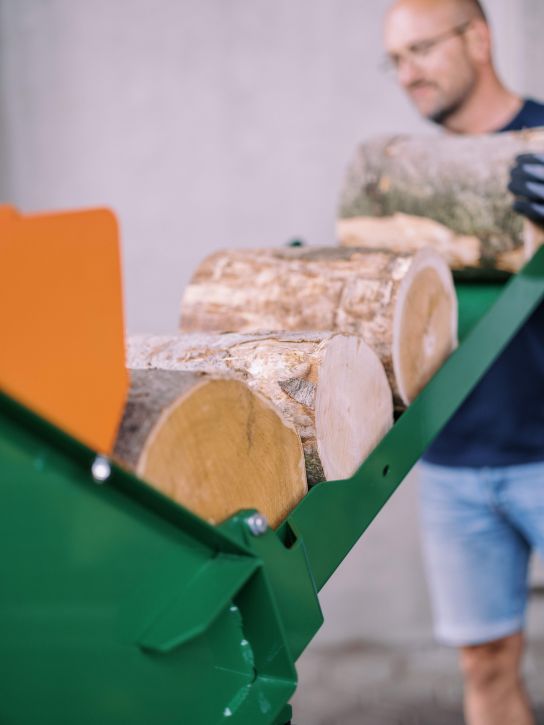

- Feeding chute for continuous feed: Even square timber up to 20 cm…
- More power: At 11 tonnes of splitting force, the automatic wood splitter…

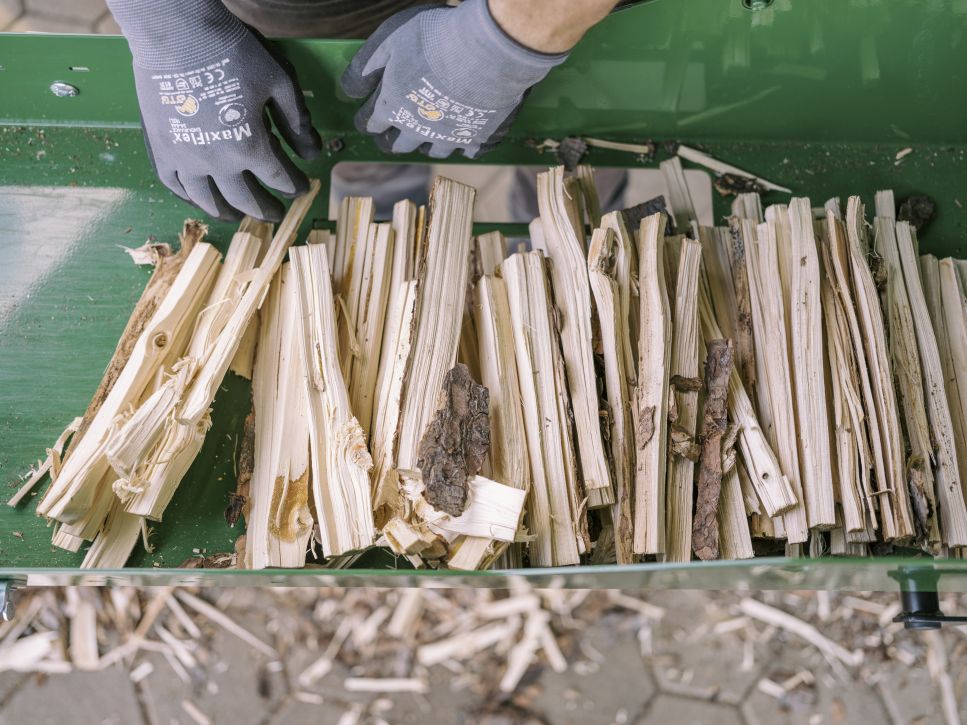

- The result: Perfect kindling!
- As a standard, the AutoSplit 250 processes timber of a length between…

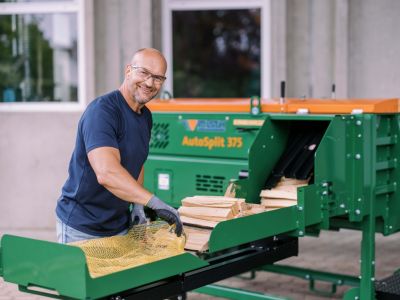

- Using the chute, the billets are neatly stacked or loosely packed directly…

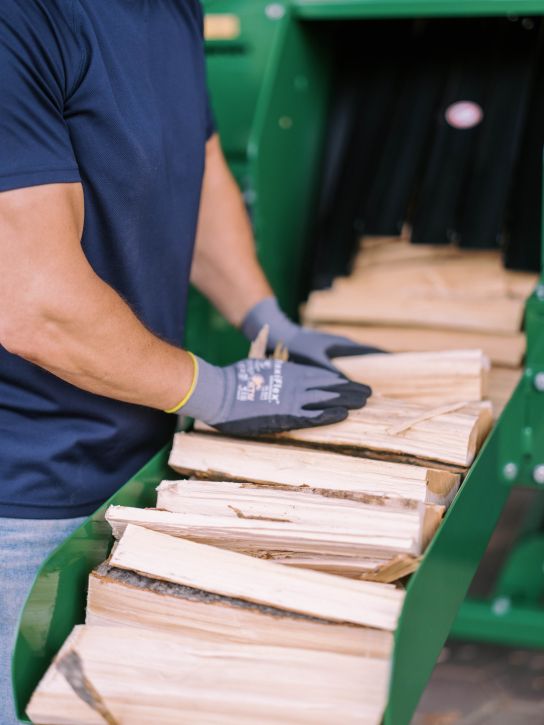

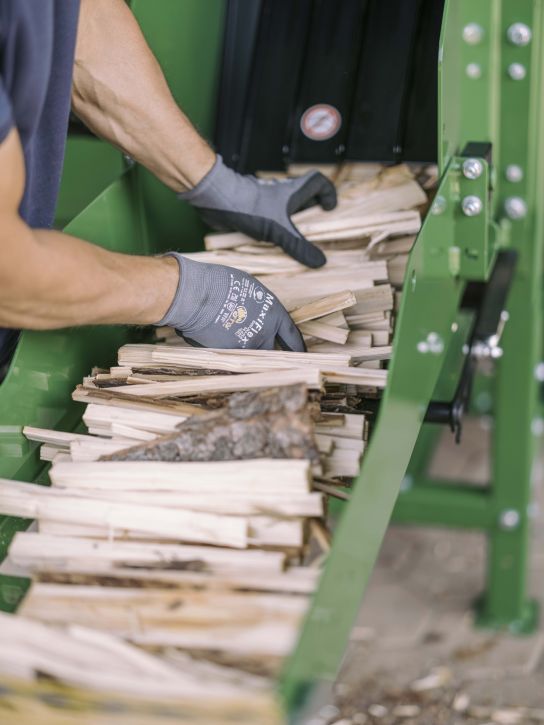

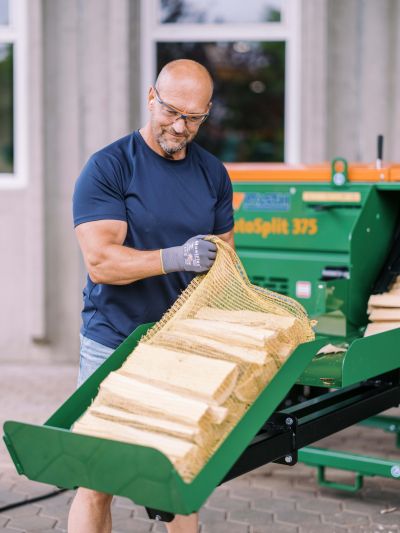

- The chute helps you stack the billets into mesh bags.

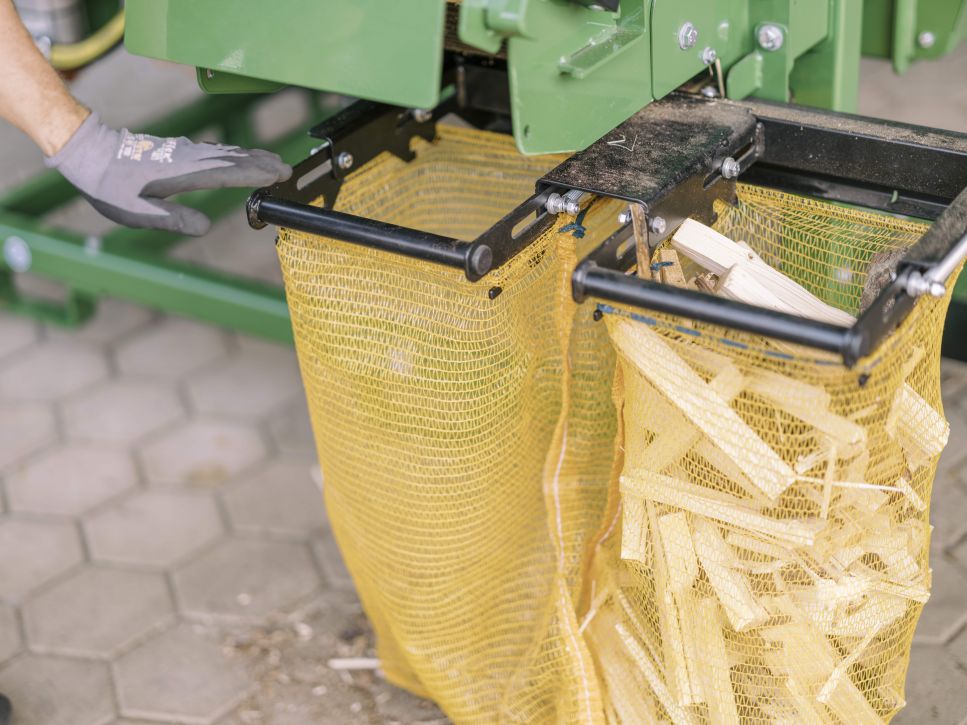

- The 2-piece frame is moveable, the billets produced fall loosely into the…
- Packaging frame for loose billets

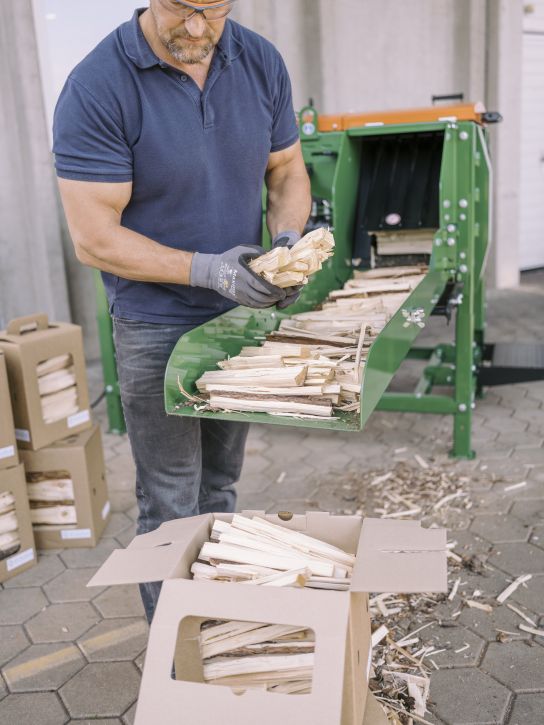

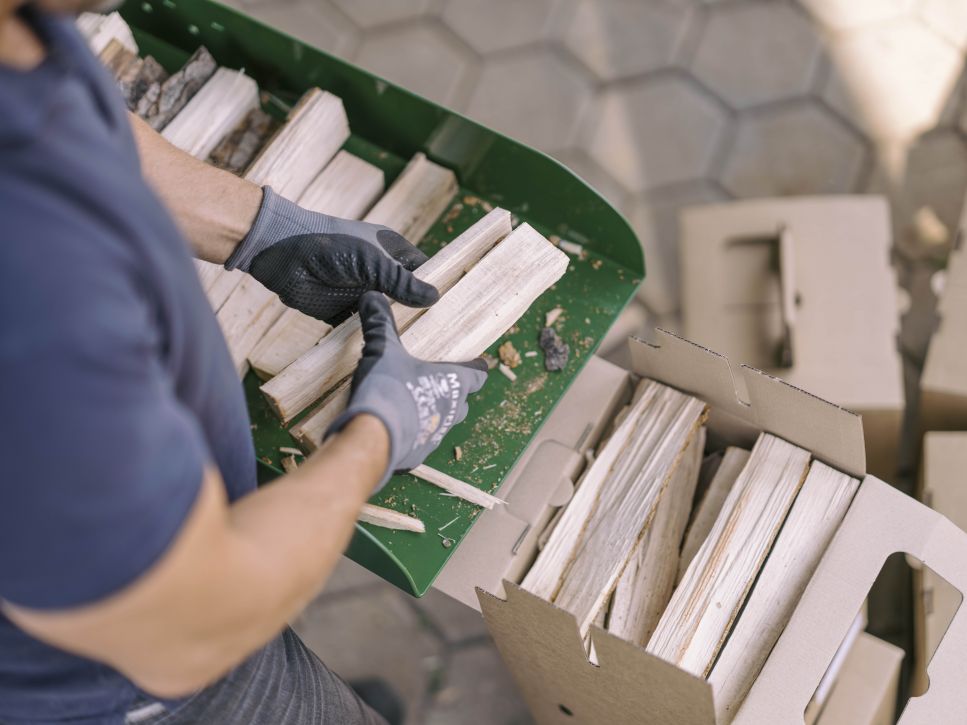

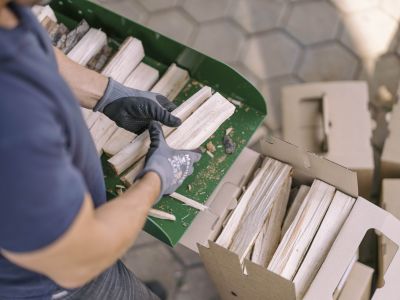

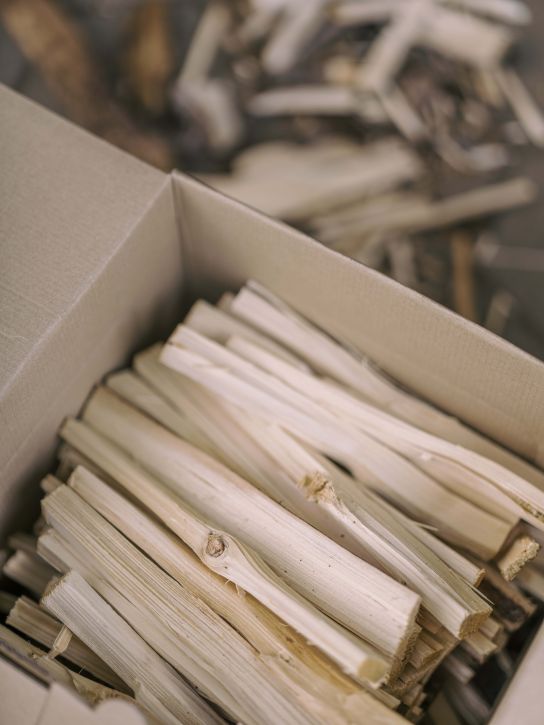

- Alternatively, you can pack the billets into environmentally friendly cardboard boxes.
- The plastic alternative: Handy carrying boxes from Equisa
- The plastic alternative: Handy carrying boxes from Equisa

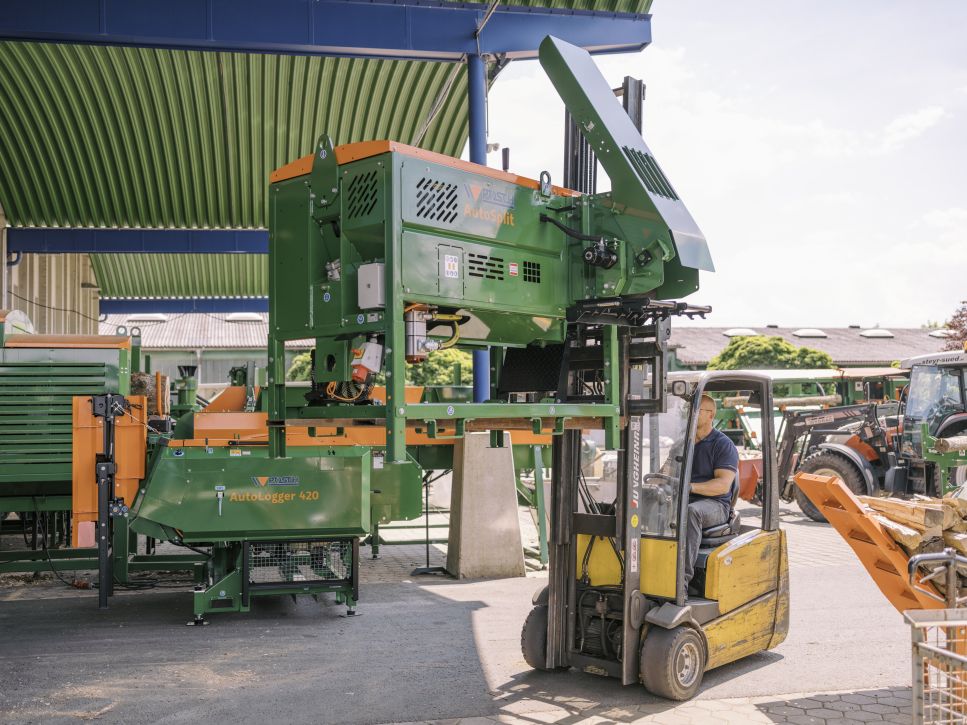

- Thanks to its forklift pockets, the AutoSplit is easy to move.

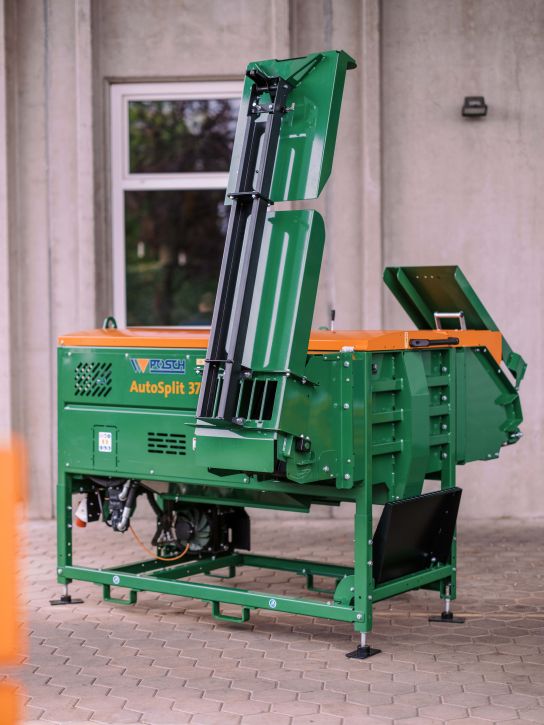

- NEW: AutoSplit 375 for logs up to 37 cm in diameter.

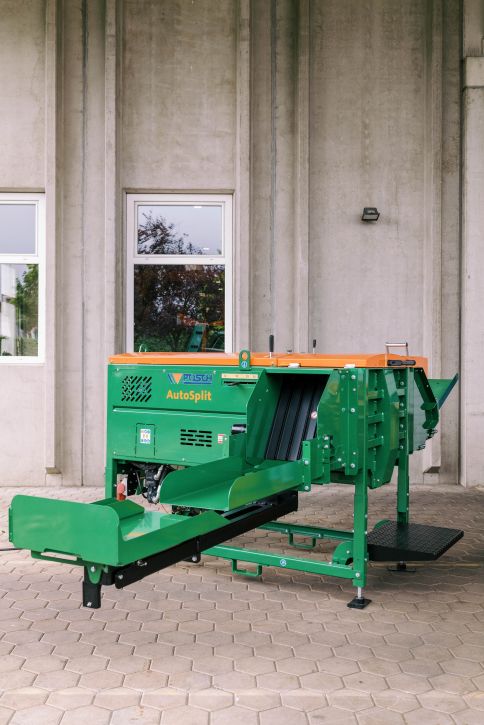

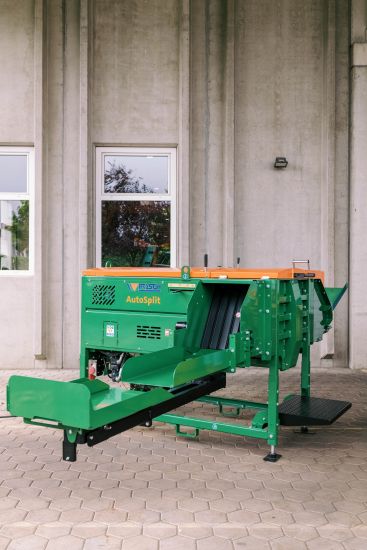

- The AutoSplit in its working position – with basic packaging module and…

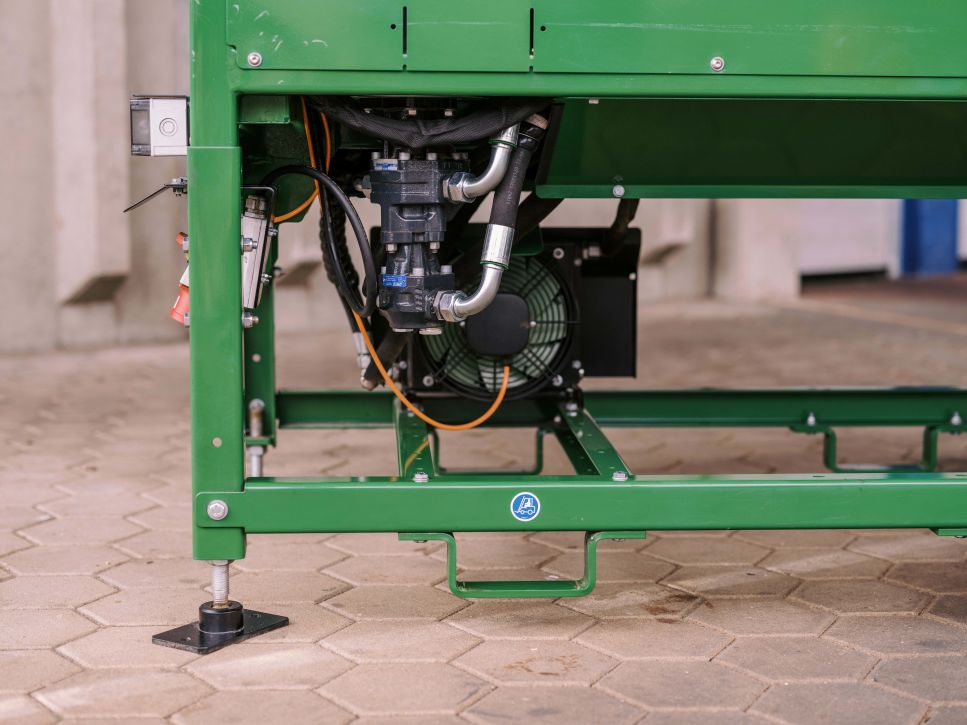

- NEW HYDRAULIC CONCEPT: The high-quality dual cast pump ensures a long service…
- The included oil cooler (not included in PZG drive versions) provides extra…

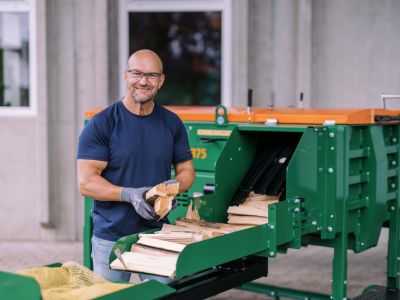

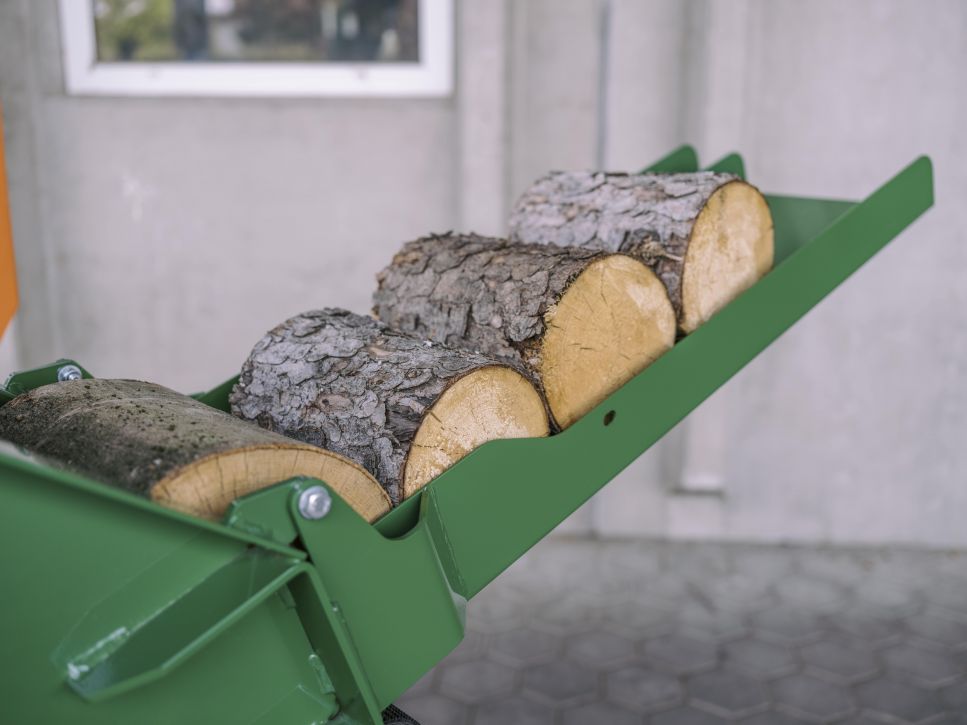

- Via the feed chute you can supply the AutoSplit with logs up…

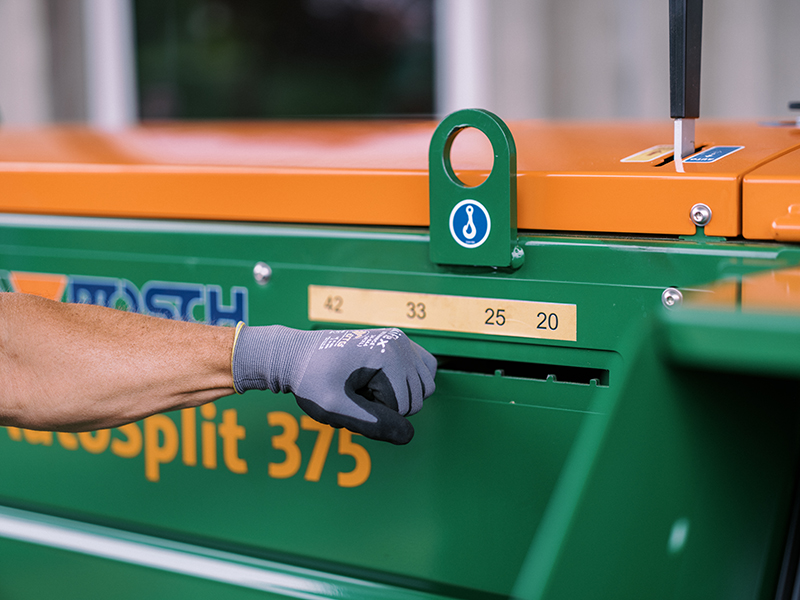

- Adjust the splitting stroke to the desired billet length – with one…
- More power: At 11 tonnes of splitting force, the automatic wood splitter…
- The packaging chute is available in 3 versions: For billet lengths of…
- Using the chute, the billets are neatly stacked or loosely packed directly…

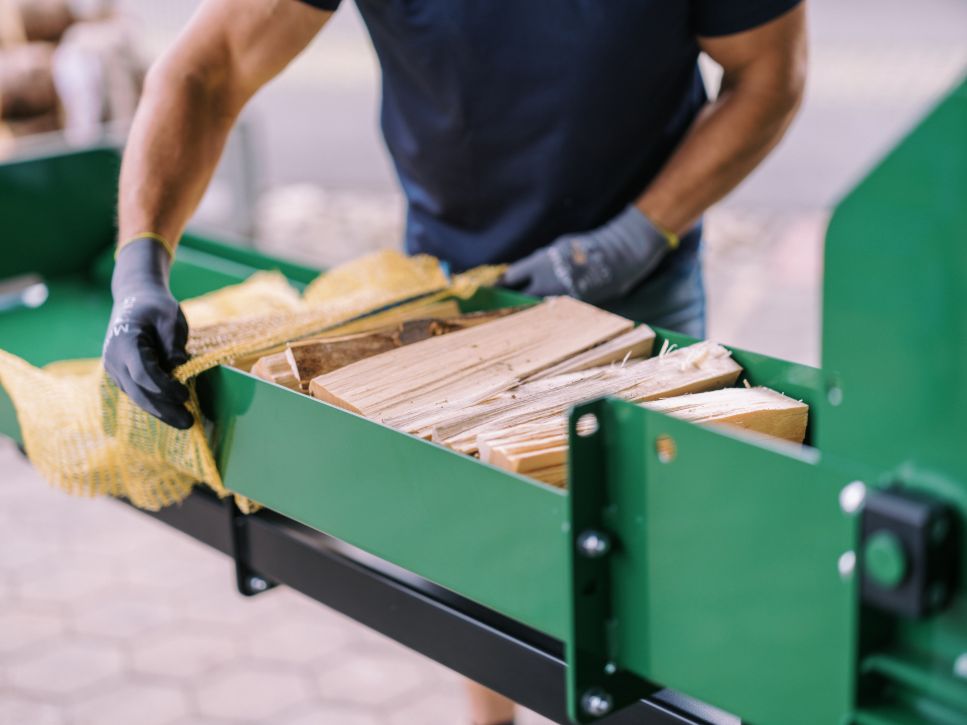

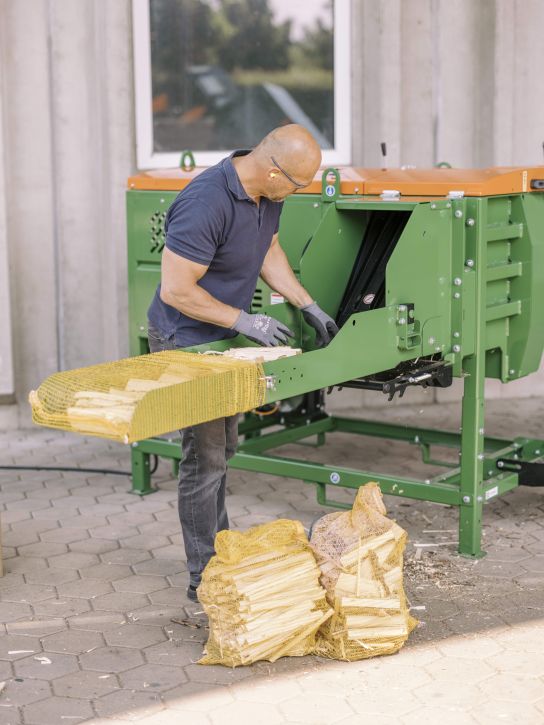

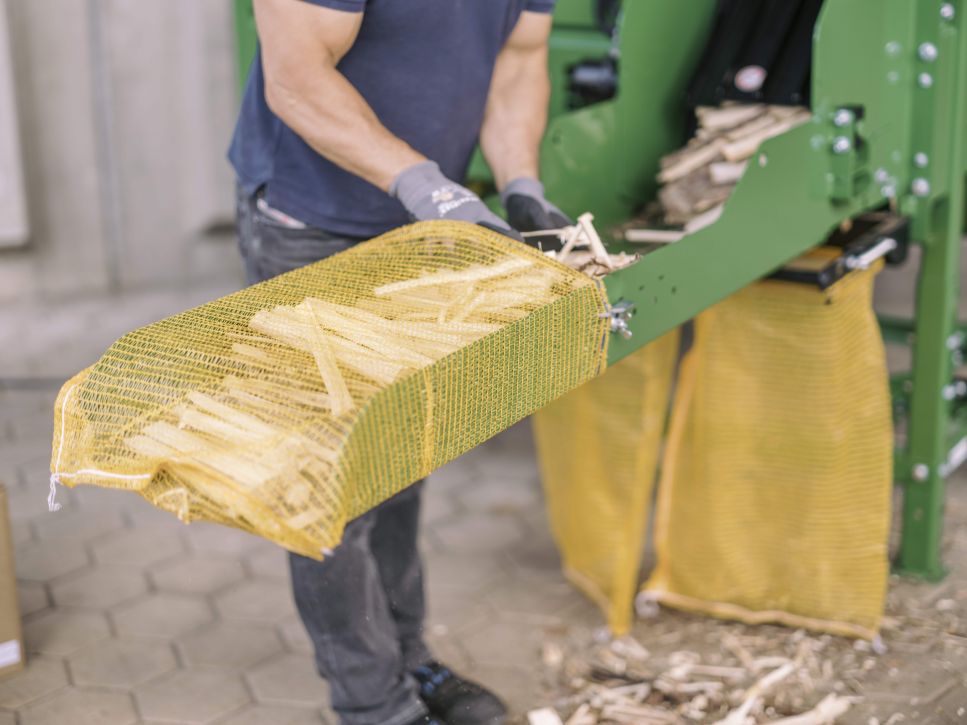

- Simply slide the mesh bag onto the chute and pack your firewood…
- Pack your kindling of firewood into mesh bags (loosely or stacked) or…
- Once you are done stacking the billets into the bags, you can…
- The plastic alternative: Handy carrying boxes from Equisa
- For transport and storage, the wood chutes can be folded up to…
