POSCH chip extraction systems For a clean work station
- Powerful 5.000 m3/h Max. air performance
- Sturdy 100 kg Min. weight
Air flow capacity up to 1,500 m3/h
350S chip extraction system
With 2-m extraction hose (⌀ 15 cm) and 10-m pressure hose (⌀ 15 cm)
Perfect for firewood processors and log diameters of max. 41 cm
Perfect for firewood processors and log diameters of max. 41 cm
- Drive PS or E-motor
- Dimensions 67 x 75 x 107 cm (DxWxH)
- Swivelling pressure joint 270° in steps of 10°
Air flow capacity up to 2,500 m3/h 400S chip extraction system
With 2-m extraction hose (⌀ 20 cm) and 10-m pressure hose (⌀ 20 cm)
Perfect for firewood processors and log diameters of max. 70 cm
Perfect for firewood processors and log diameters of max. 70 cm
- Drive PS or E-motor
- Dimensions 83 x 93 x 117 cm (DxWxH)
- Swivelling pressure joint 270° in steps of 10°
The perfect addition Zyklon is available in two sizes
Separates dust and dirt particles from the incoming air, collecting them in a controlled and centralised way
Required for chip extraction systems – for a low-dust environment
Required for chip extraction systems – for a low-dust environment
- Available in 2 sizes
- Support frame optional

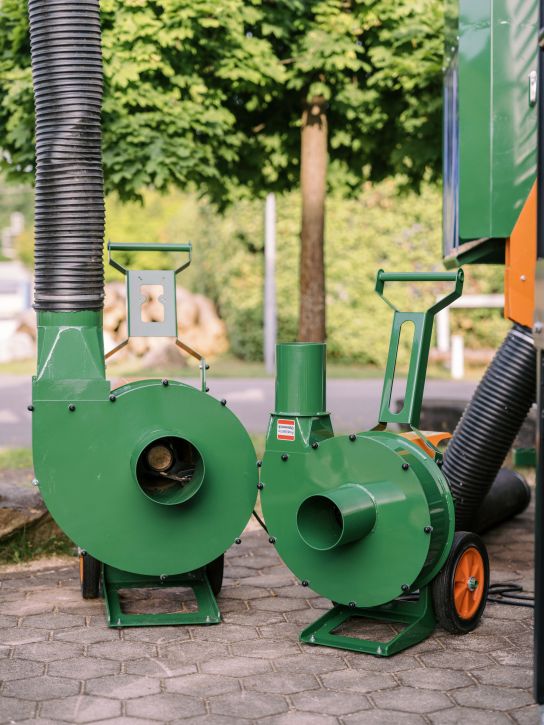

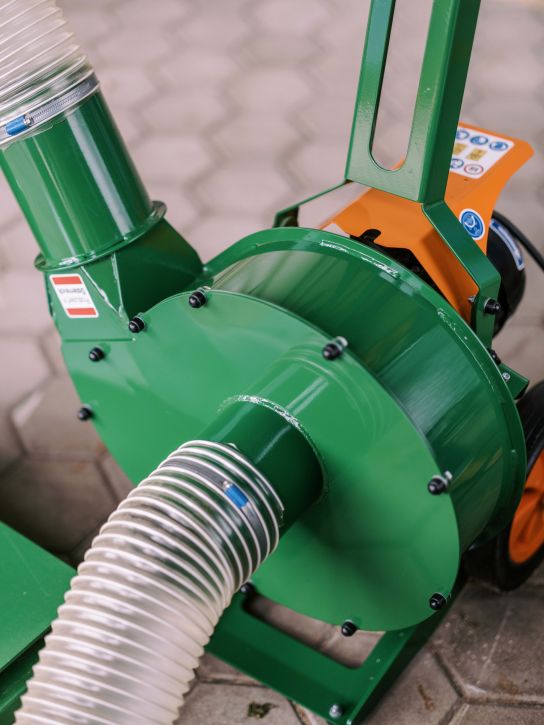

Chip extraction fan
The extraction system is connected directly to the cutting unit by means of an extraction connection. The fan draws in the contaminated air, removing it via the pressure hose. Available in two sizes:
- Chip extraction system 350S (air performance up to 1,200 m3/h)
Perfect in combination with all circular saws, automatic firewood saws and smaller firewood processors (e.g. POSCH SpaltFix S-375, K-415, S-415) - NEW: Chip extraction system 400 (air performance with 10 m hose length 2.500 m3/h)
Perfect in combination with the firewood processors SpaltFix K-650 Vario, K-660 a-Vario and the new Zyklon 400.
Less noise. Rotating. More power.
That’s our newly updated chip extraction systems in a nutshell!

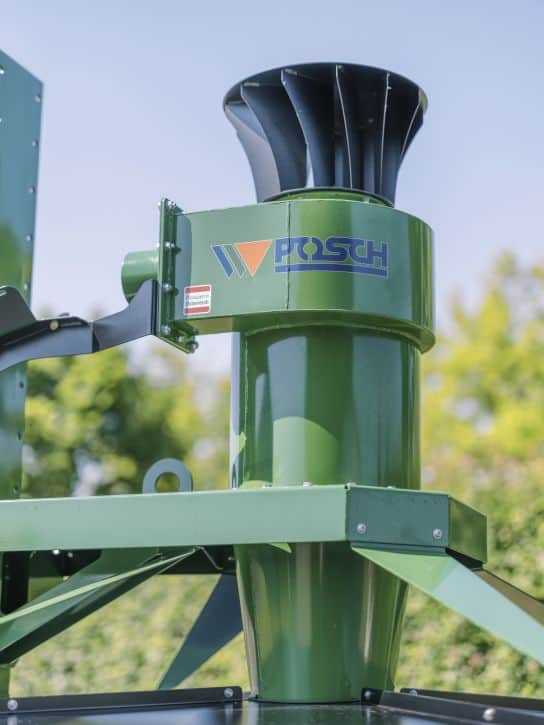

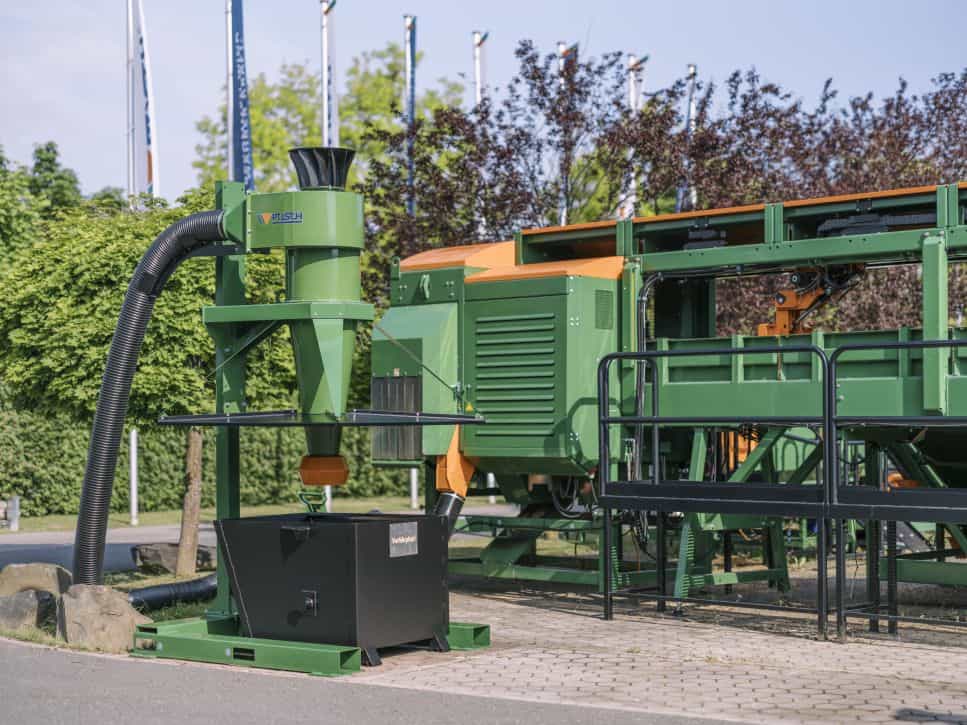

NEW: The Zyklon

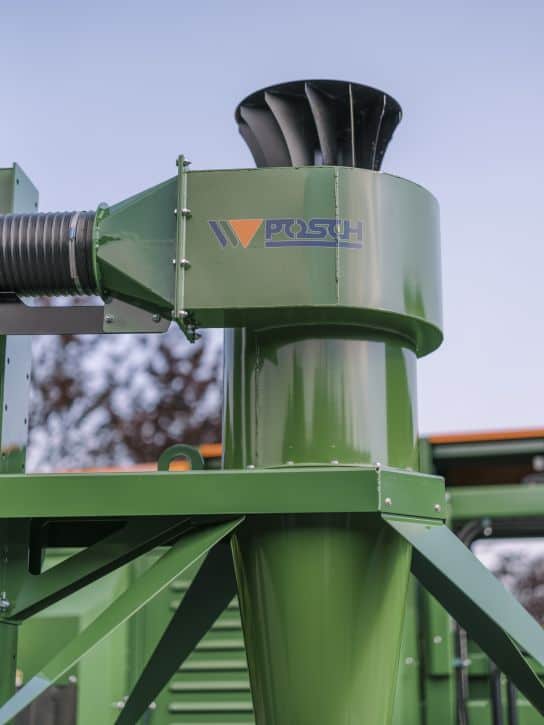

The chip extraction system transfers the extracted air to the Zyklon via the pressure hose, where large particles and chips are separated before the air is discharged via the air filter. Contaminations can be collected in a container. Available in two sizes:
- Zyklon 350 (air flow capacity up to 1,500 m3/h)
Perfect match for chip extraction system 350S. Recommended for all log saws, circular saws, automatic firewood saws and smaller firewood processors up to a log diameter of max. 41 cm (e.g. POSCH SpaltFix S-375, K-415, S-415) - Zyklon 400 (Air flow capacity up to 2,500 m3/h)
Perfect match for chip extraction system 400S. Recommended for large firewood processors up to a log diameter of max. 65 cm (e.g. SpaltFix K-540, SpaltFix K-650 / K-700 Vario or K-710 a-Vario)
With our chip extraction solutions, you create a low-dust working environment and collect the chips in a controlled, centralised manner for further use.

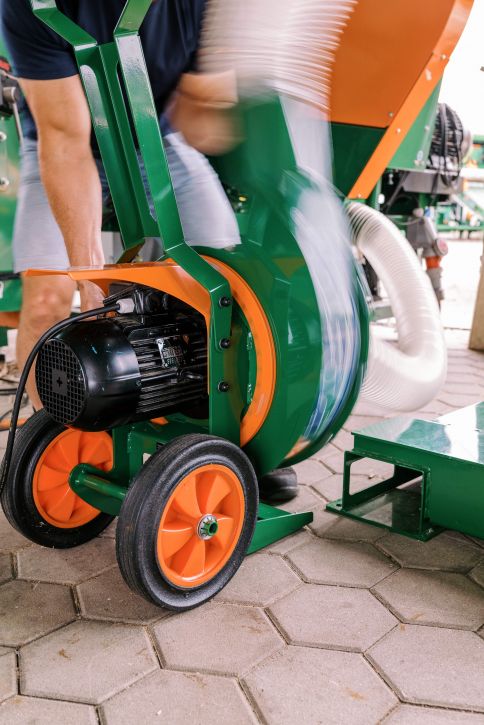

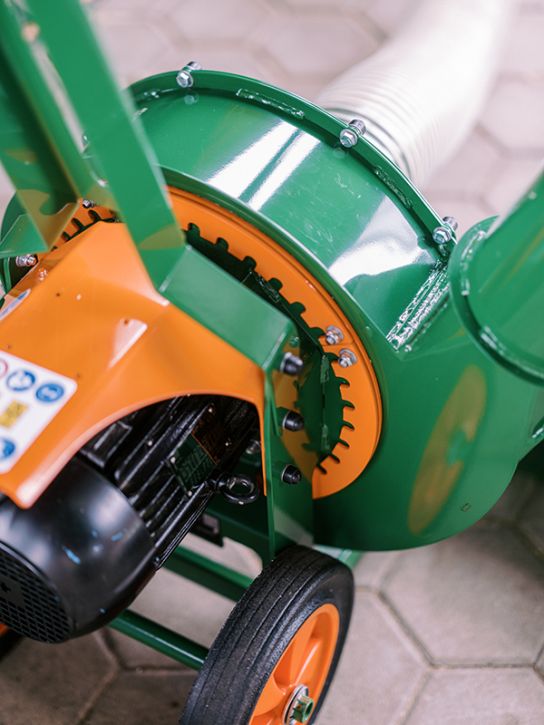

- In just a few steps, the pressure joint can be adjusted by…

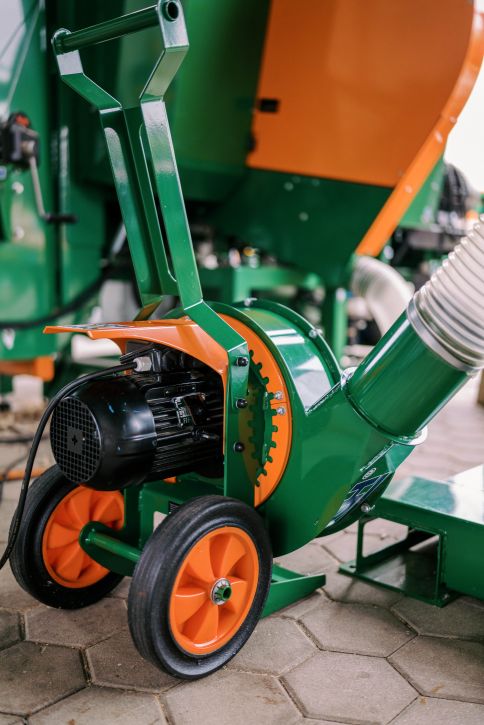

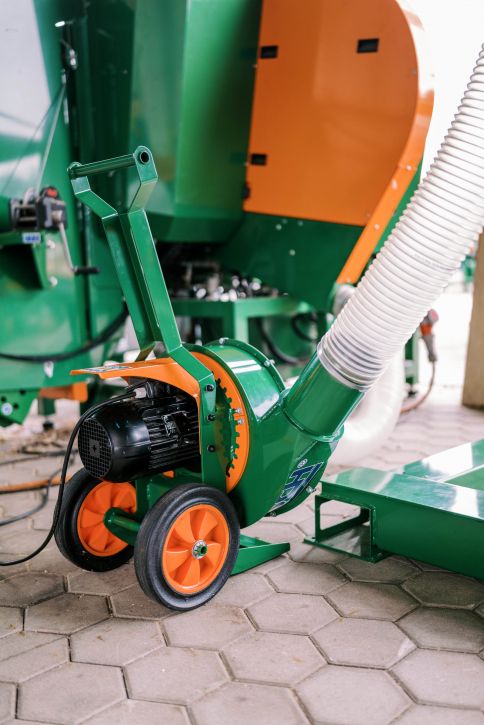

- The 350S chip extraction system in detail.

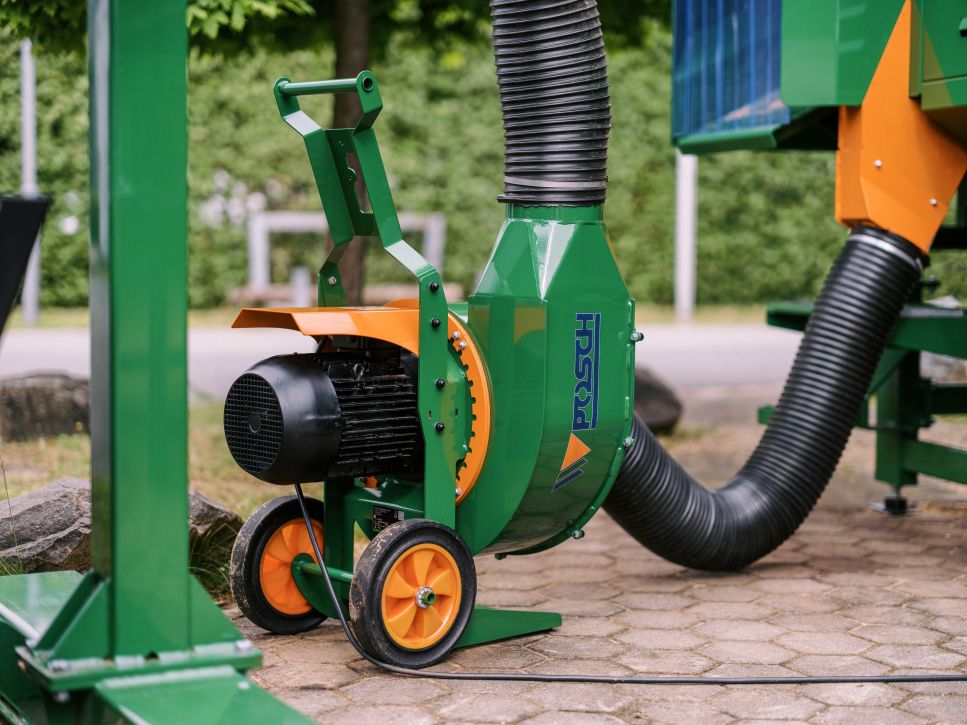

- The extraction system is available with a powerful PS drive or e-motor.
- Despite its sturdy construction, the extraction system is highly flexible thanks to…
- The extraction system is 107 cm long and 75 cm wide. Its…

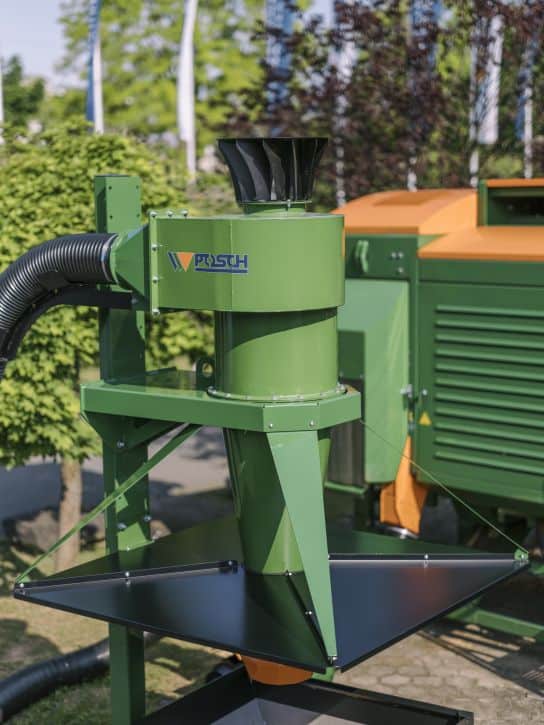

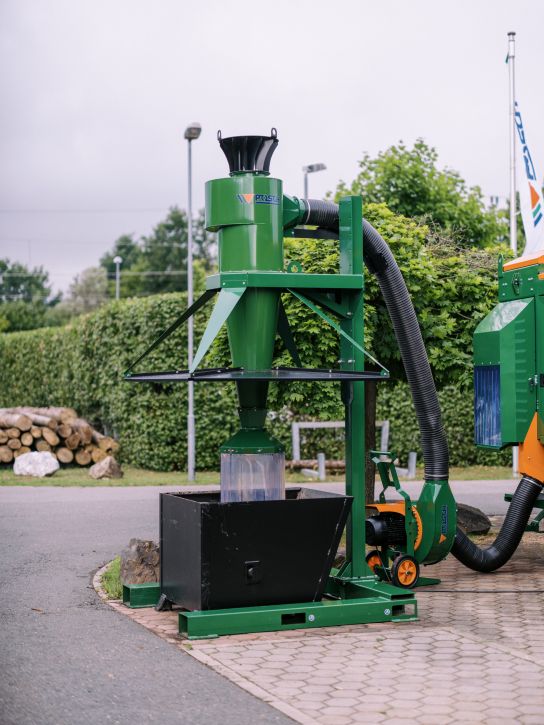

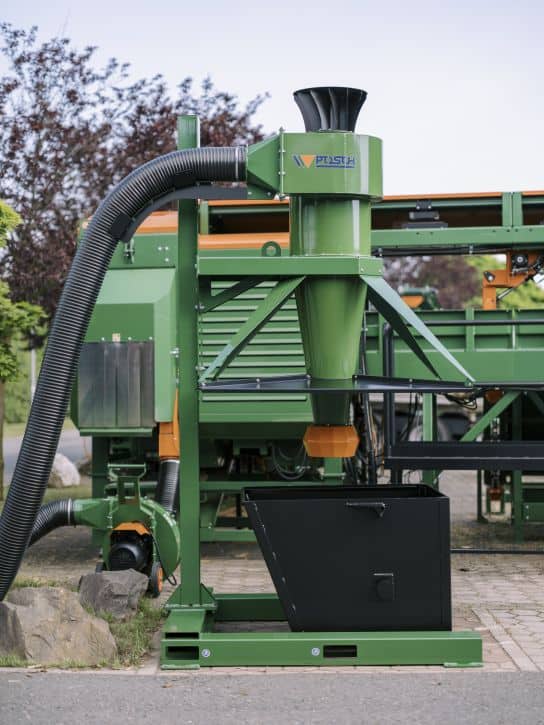

- Zyklon 350 with optional, height adjustable support frame.
- The Zyklon can also be mounted directly to the wall.

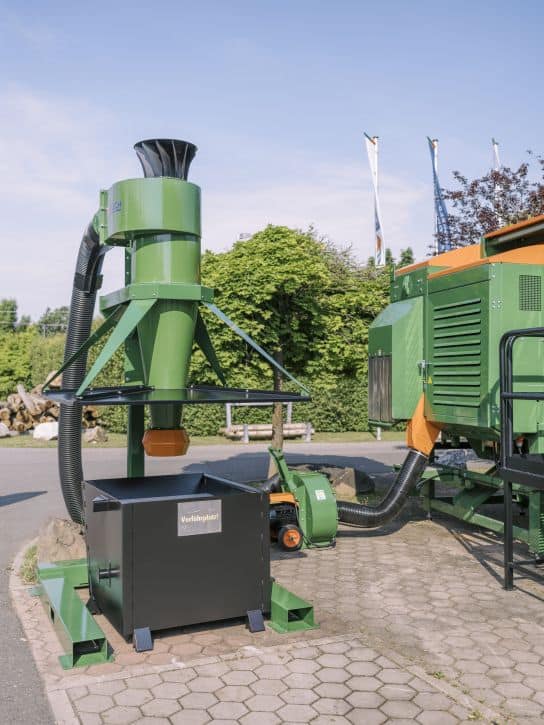

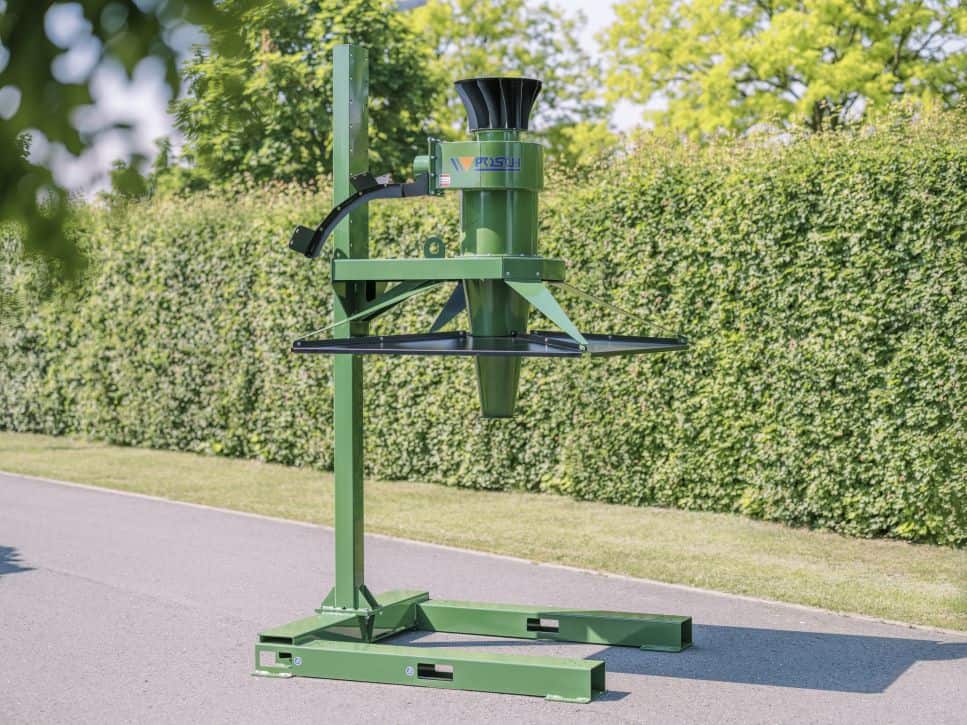

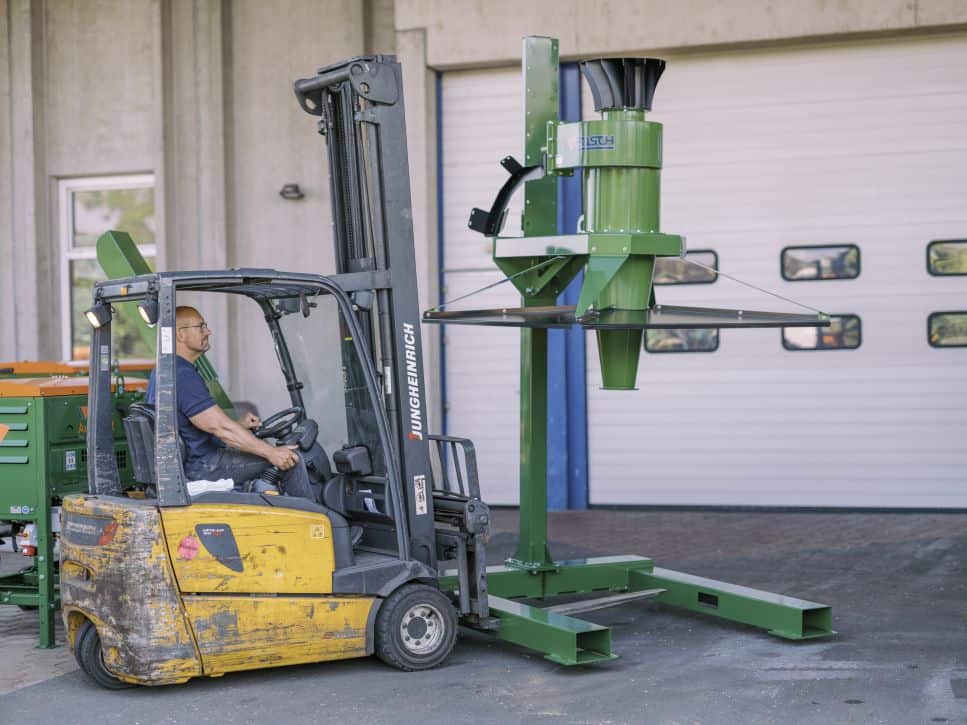

- The forklift pockets make Zyklon (pictured with frame) mobile.

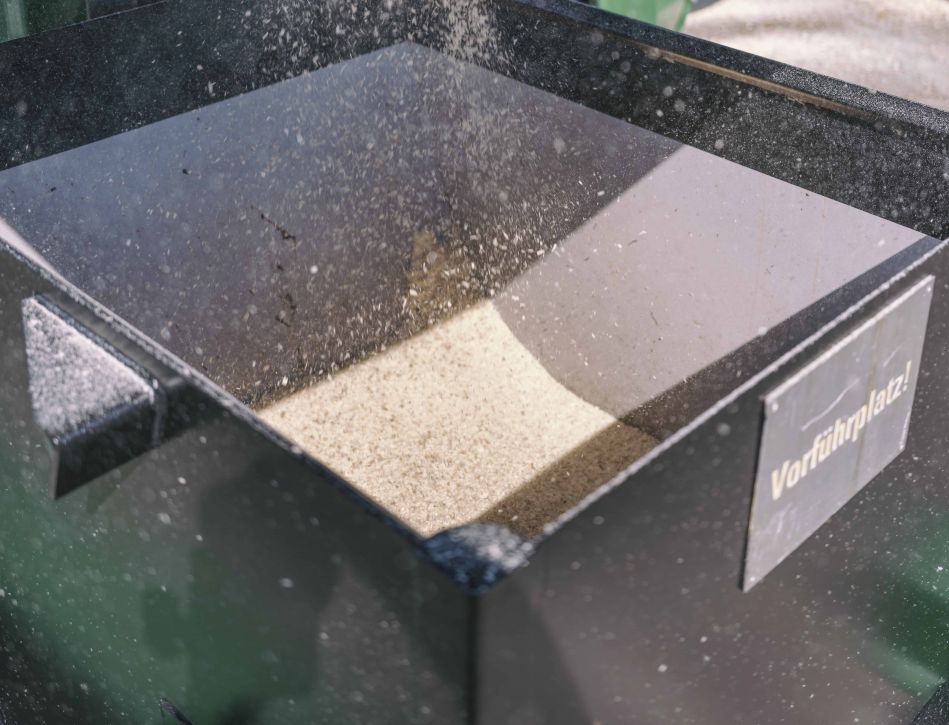

- Collected chips.

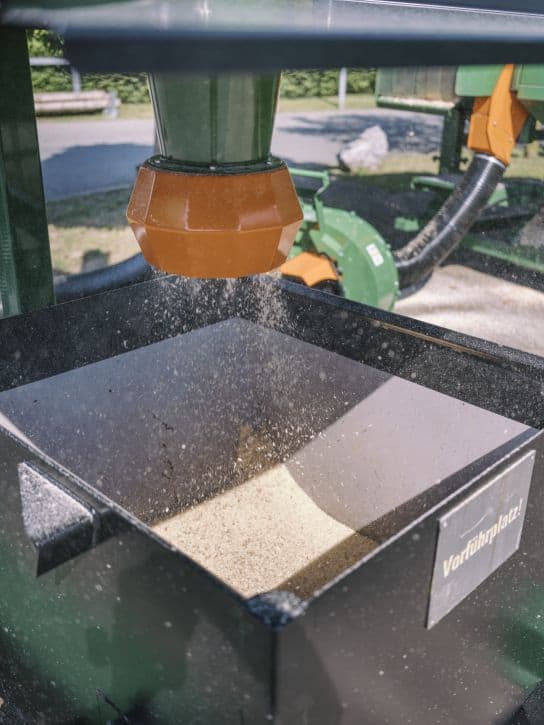

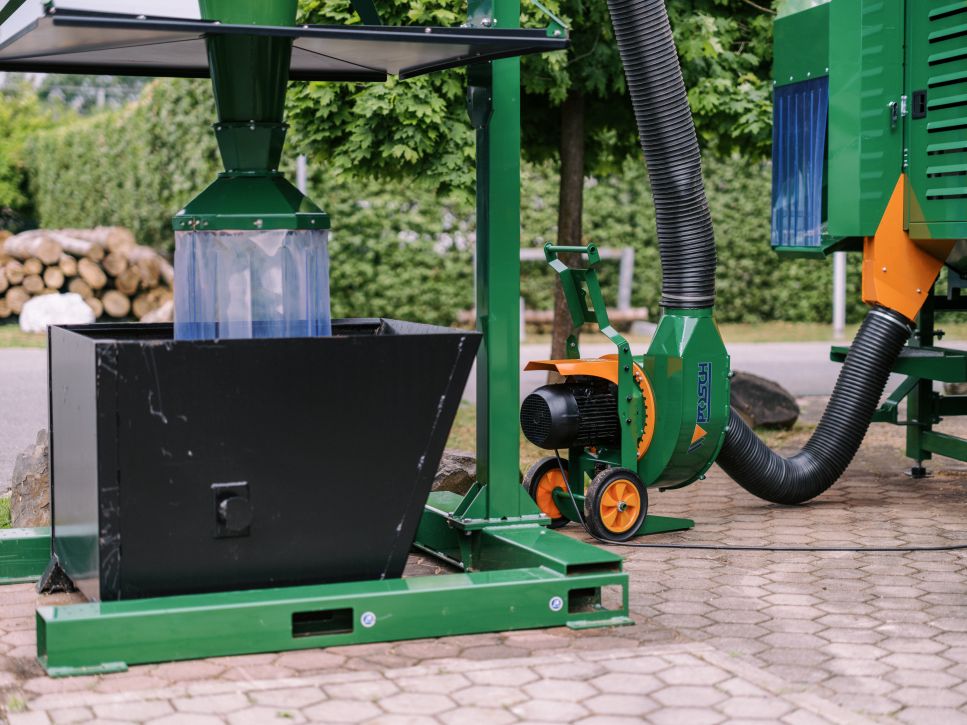

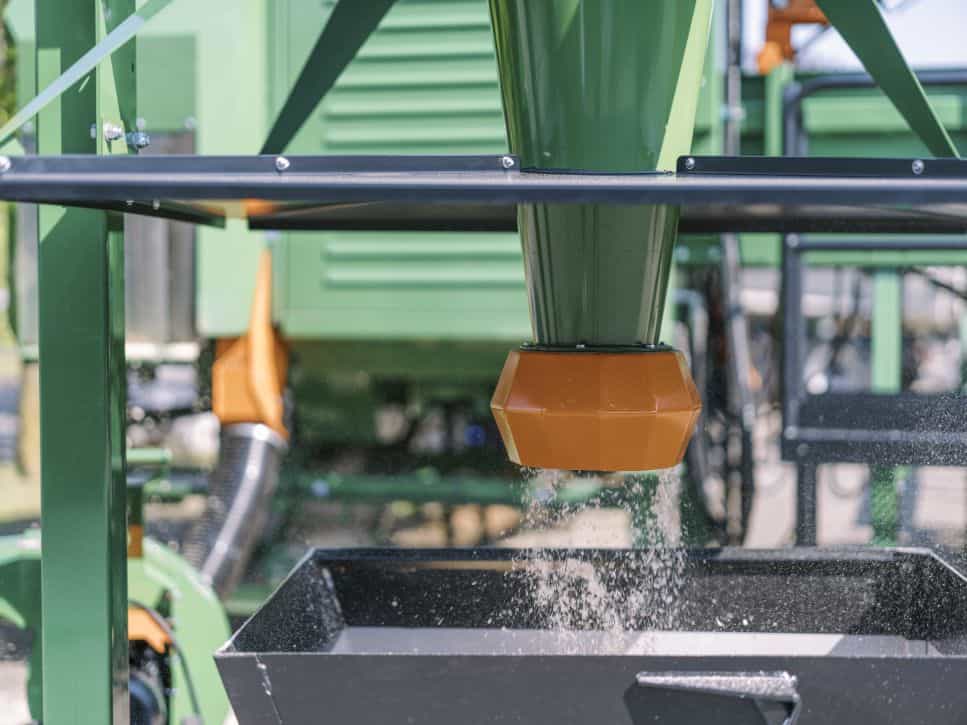

- Saw dust is collected in a container in a centralised, clean and…
