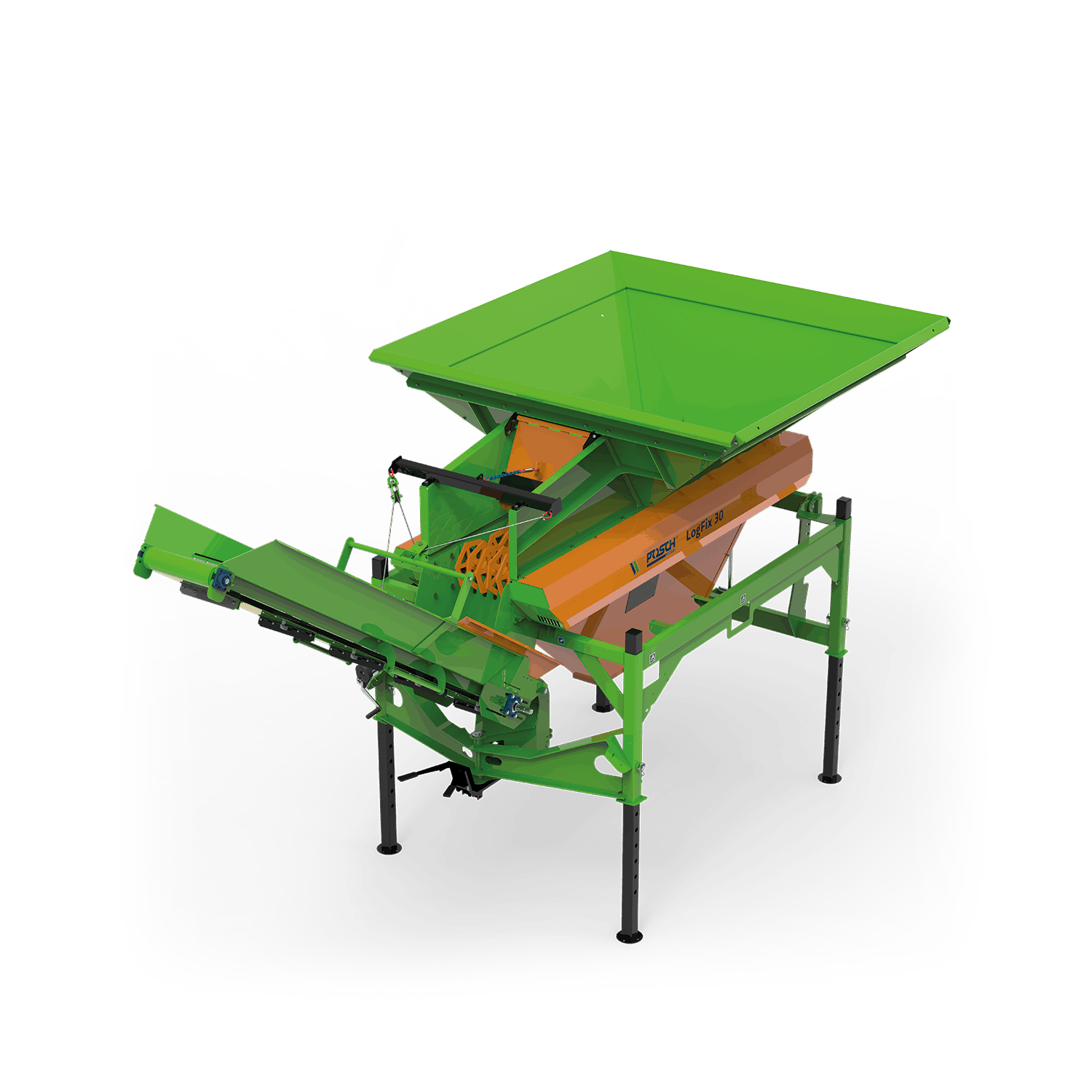

LogFix 30 A clean thing – clean and load up to 30 m3 of logs per hour
Hover over the image to zoom - 30 Max. loose m³/ hour
- 2.4 x 0.53 m Screen surface
Details
LogFix separates logs from splinters and delivers high-quality firewood in very little time. Rotating rollers separate the undesirable chips, bark pieces and splinters from the firewood and drop them. As the rollers rotate with only 25-70 rotations per minute, LogFix is very quiet. Under the screen, there is a funnel that passes the scrap wood on to an optional conveyor belt or a container. With the radio remote control, the screen can easily be switched on and off from any operator position.
- Screen width 2.5 cm non-adjustable
- Screen surface 240 x 53 cm, tilt adjustable 0-10° (mounted at 0° as standard)
- 11 rotating rollers, increasing roller speed (25 rpm to 75 rpm) in conveying direction
- Standard standstill monitoring system for screening drums with automated reversal of rotating direction to prevent jams
- Filling funnel 260 x 85 cm as standard
- Adjustable waste funnel as standard
- Feeding only possible via a conveyor belt with a width of up to 80 cm
- Cleaning performance max. 30 loose m³/h
- Undercarriage height adjustable
- Flange width 40 cm, matching optional conveyor belt
- Optional radio remote control
- Optional 240 x 240 cm filling funnel, also suitable for shovel feed from 3 sides (max. 2.5 m3) – not suitable for wood with a billet length of 50 cm!
| spezialprogramm | ||||
| Article no. | Type | Propulsion | Weight kg | list price excl. VAT |
|---|---|---|---|---|
| M8030 | E2.2-400 3x 400V, 50Hz | 2.2 kW E-motor 400V/50 Hz, S6, CEE 16 A E-drive: with motor protection switch, screen start/stop/return function, conveyor belt forward and phase inverter | 1370 | 18.000,00 |
| M8030NE1 | E1.5 3x 460V, 60Hz | 1.5 kW E-motor 3x460V/60Hz, S1. Only suitable for USA / CAN! For details see appendix B.The machine is offered for field evaluation by the customer in the USA or the special inspection in Canada with a 3x460V/60Hz drive, a CSA certified Wattdrive e-motor and button with UL or CSA certified parts | 1371 | 21.050,00 |
Special equipment
Make your work routine easier with a seriesof useful additional pieces of equipment. With original equipment incl. assembly.
| spezialprogramm | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| RC (SO1417) | 2 remote controls for start/stop / conveyor belt swivel function (H/SO1418), manual screen return function on switch cabinet | 1.980,00 |
| SF3 (SO1337) | Swivelling conveyor belt, 0.75 kW geared motor, swivelling range approx. 2 m, manually adjustable, tilt adjustable 0-35° with manual cable winch, ejection height: up to 3.5 m (Option H recommended) | 4.800,00 |
| SF5 (SO1439) | Swivelling conveyor belt, 1.5 kW geared motor, swivelling range approx. 2.5 m, manually adjustable, tilt adjustable 0-35° with manual cable winch, ejection height: up to 4.5 m (Option H required) | 7.800,00 |
| H (SO1418) | Hydraulic conveyor belt swivelling function, swivelling range approx. 2 m, manually adjustable, tilt adjustable 0-35°. Attention! Only possible in combination with RC | 1.550,00 |
| T (SO1419) | Filling funnel (240 x 240 cm) for 3-side shovel feed possibility, max. filling quantity 2.5 loose m³ | 1.920,00 |
Accessory equipment
Practical accessories for more performance and convenience when working with wood. We offer suitable options for transporting the sprues in the conveyor belts section.
| standardprogramm | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0004723 | Chassis for simple machine transport (e.g. with forklift) on level ground, bolt hole 40 mm | 1.750,00 |
| F0004634 | 75 cm slide extension, transfer height 15-145 cm. Attention! Cannot be combined with SF3/SF5 | 1.200,00 |
| F0004847 | Operator pedestal for ladder, suitable for particularly high working positions | 750,00 |
| F0004849 | Hydraulic conveyor belt rotating function, rotating range approx. 2 m, manually adjustable, tilt adjustable 0-35° using rope winch. ! Attention: Only in combination with RC | 1.750,00 |
