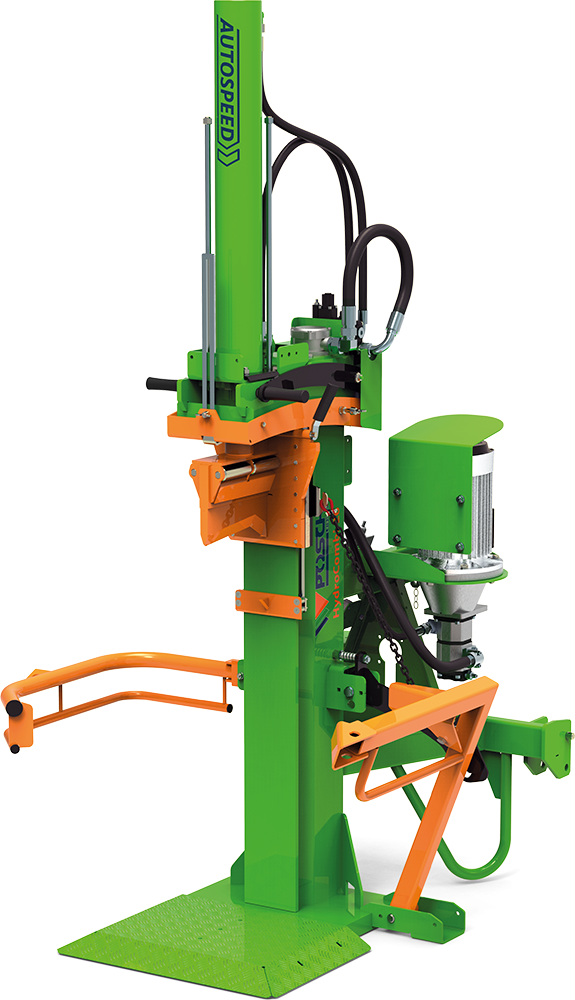

HydroCombi 26 The professional vertical splitter for metre-long logs with maximum power
Hover over the image to zoom - 26 t Splitting power max.
- 614 kg Weight min.
- 23/17 cm/s Splitting speed/ Return speed max.
Details
HydroCombi 26 , the professionalvertical splitter from POSCH. Ideal for metre-long logs. With the Fixomatic system or the timber retaining tip, the timber can be fixed during the splitting process so that you do not have to take the trouble to hold it in place. The standard log lifting device puts heavy logs into position and ensures back-friendly and easy splitting.
- Fixomatic system
- Autospeed
- Max. billet length 110cm
- Cylinder stroke 100cm
- Tank capacity 43 l hydraulic oil
- Height transport/ work position 200/263cm
- Three-point linkage cat. I + II
| standardprogramm | |||||||
| Article no. | Type | Propulsion | Forward level 1 / 2 cm/s | Return cm/s | Split force t | Weight kg | list price excl. VAT |
|---|---|---|---|---|---|---|---|
| M2140MR | PZG-R | Tractor PTO shaft, power consumption 24 kW, oil pump with max. capacity 60 l/min-built-in, recommended PTO shaft speed 300-450 rpm Tractor drive: universal shaft required, three-point linkage cat. I+II | 10 / 23 | 17 | 26 | 616 | 7.290,00 |
| M2145MR | E7.5D-R | 7.5 kW e-motor 400V, S6, CEE 16A, dual-stage pump E-drive: with motor circuit breaker and phase inverter | 6 / 20 | 15 | 26 | 650 | 8.860,00 |
| M2143MR | PZG-E7.5D-R 3x 400V, 50Hz |
Combi: Tractor drive: universal shaft required, three-point linkage cat. I+II, E-drive: with motor circuit breaker and phase inverter |
|
| 26 | 676 | 9.800,00 |
Rope winches for HydroCombi 22/26
Energy-efficient working with the POSCH rope winches! The compact rope winches pull every log up to the machine without exertion of force on your part and put them in the splitting position. The smooth start-up and smooth lowering features ensure a smooth transportation of heavy logs as well.
| ersatzteile | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| HW (SO1139) | Cable winch 750, manual, 40 m cable, pulling force 750 kg, unlimited cable unwind speed. Available for HydroCombi 16, 18, 20, 22, 24 and 26 Can only be used with PTO shaft operation, cannot be used with PZG-E machines in e-drive! 12V connection from tractor required. | 2.800,00 |
| FH (SO1175) | Cable winch 750, radio- and manually operated, 40 m cable, 750 kg pulling force, unlimited cable pull unwind speed, operation with standard batteries/rechargeable batteries. Available for HydroCombi 16, 18, 20, 22, 24 and 26 Can only be used with PTO shaft operation, cannot be used with PZG-E machines in e-drive! 12V connection from tractor required. | 3.560,00 |
| F0003962 | Gripping tongs with coil spring to cable winch, up to log ∅ 65 cm | 320,00 |
| F0003971 | Gripping tongs with coil spring to cable winch, up to log ∅ 80 cm | 360,00 |
| F0003978 | Adapter from 3- to 7-pin | 60,00 |
| F0002605 | Chain for cable puller, 1 m, 2-log hauling hook for 1,000 kg | 190,00 |
-
Rope winch "750"
Rope winches for HydroCombi 22/26
Select the right retrofit kit for your machine. A 12V connection on the tractor is required. The 500 or 750 winch models can be retrofitted on machines of the „M“ (article no. MxxxxMR, from2010) and „L“ (article no. MxxxxLR, from 2011) series. Two brackets must be welded on to support thewinch on the column. The installation time is approx. 4-6 hours.
| standardprogramm | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0003867 | Rope winch retrofit kit for HydroCombi 22/26 MxxxMR/LR PZG: Winch 750 (HW), manually operated, 40 m rope, 750 kg pulling force. Unlimited rope extension speed, weight ~130kg | 3.160,00 |
| F0003868 | Rope winch retrofit kit for HydroCombi 22/26 MxxxMR/LR PZG-E:Winch 750 (HW), manually operated, 40 m rope, 750 kg pulling force. With new motor position, three-point clamping. Unlimited rope extension speed, weight ~130kg | 3.160,00 |
| F0003869 | Rope winch retrofit kit for HydroCombi 22/26 MxxxMR/LR PZG: Rope winch 750 (FH), remote and manually operated, 40 m rope, 750 kg pulling force. Operation with standard battery/rechargeable batteries, unlimited rope extension speed, weight ~130kg | 3.940,00 |
| F0003870 | Rope winch retrofit kit for HydroCombi 22/26 MxxxMR/LR PZG-E: Rope winch 750 (FH), remote and manually operated, 40 m rope, 750 kg pulling force. With new motor position, three-point clamping. Operation with standard battery / rechargeable batteries, unlimited rope extension speed, weight ~130kg | 3.940,00 |
| H (SO1233) | Extension of the conversion for HydroCombi 16/18/20/22/24 Turbo/26 MxxxMR/LR with hydraulic log lift H (e.g. F0003861H) | 215,00 |
- Rope winch "750"
Special equipment / Retrofit kit
Make your work routine easier with a seriesof useful additional pieces of equipment. With original equipment incl. assembly.
| standardprogramm | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| H (SO1007) | Hydraulic log lifting device (instead of mechanical lifting device), controlled via valve. No GS-mark! | 1.350,00 |
| SA (SO1008) | Road chassis consisting of: Rubber spring-borne axle 80 km/h, with ball hitch, overrun and parking brake, support wheel, lights Machine can be uncoupled | 4.780,00 |
| A142 (SO9142) | Individual permit / Individual type approval (EBE) for road admission, only possible for deliveries to Austria and Germany! | 750,00 |
-
Hydraulic log lifting device
Accessory equipment
Handy accessory equipment for more power and convenience for wood processing.
| standardprogramm | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0003049 | Attachable floor grid, anti-slip (HC 20/22/24 Turbo/26) | 350,00 |
| Z2000636 | Walterscheid W-Line universal shaft | 295,00 |
| Z2000653 | Walterscheid W-Line universal shaft | 440,00 |
| F0003357 | Power saw bracket: Safe transportation and handy storage for the power saw | 190,00 |
| F0001482 | Hour counter for machines with petrol engine | 180,00 |
| F0002179 | Hour counter for machines with E-drive | 170,00 |
| F0001806 | Hour counter for machines with PTO drive, includes rpm display | 490,00 |
| F0004895 | Retrofit kit 5.5 kW E-motor, for PZG models HydroCombi 16, 18 and 20 from production year 2023 | 1.800,00 |
| F0004896 | Retrofit kit 5.5 kW E-motor, for PZG models HydroCombi 22, 24 and 26 from production year 2023 | 2.300,00 |
-
Push-on floor grid -
Power saw bracket
